Product details

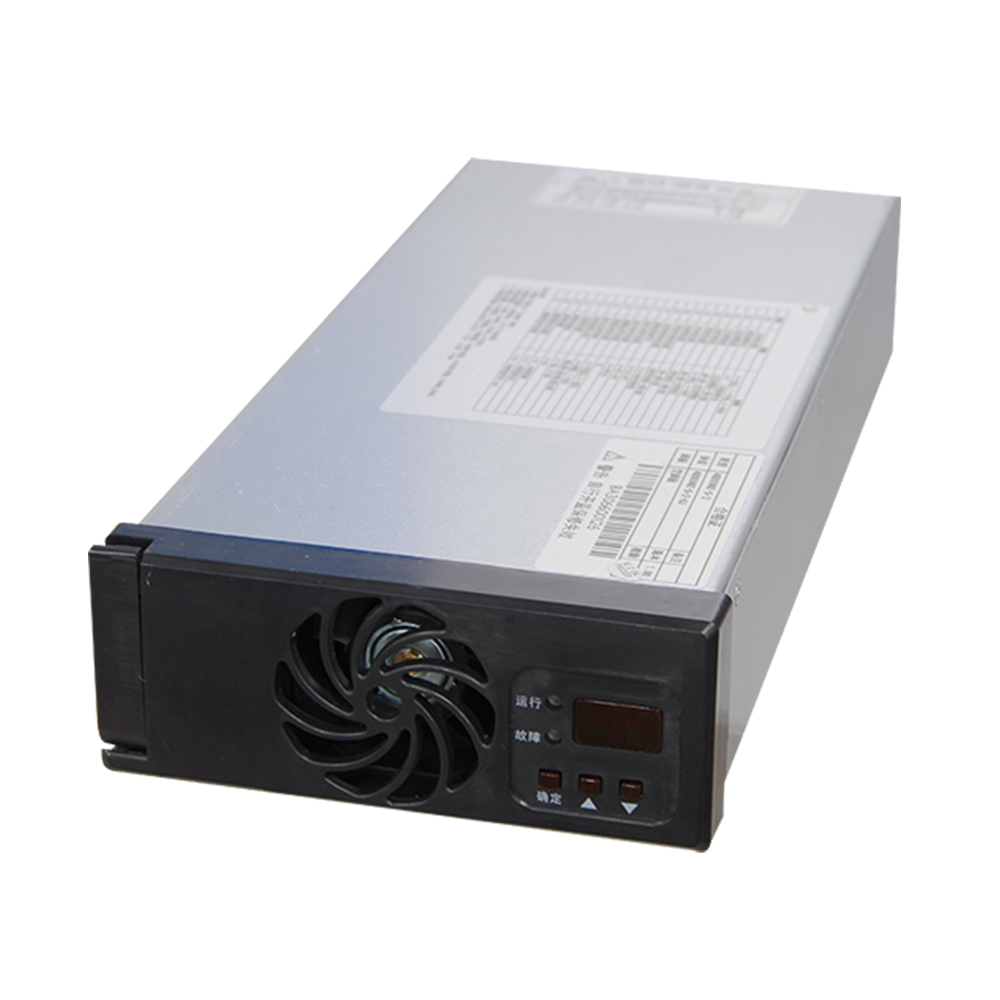

TH48D50NZ-S-2

Small size, high conversion efficiency, stable performance; air-cooled heat dissipation, wide working environment range; metalized package, dust-proof and moisture-proof, strong anti-interference ability; wide input range, strong grid adaptability; good electromagnetic compatibility, various The technical indicators conform to "DL/T1074-2019 Integrated DC and AC Uninterruptible Power Supply Equipment for Electric Power"

★Weight: 3kg

★Size: 106.5mm*41.2mm*227mm (W*H*D)

★Cooling method: air cooling

★Working temperature: -10℃～40℃

★AC input voltage VAC: 85~264

★DC output voltage VDC: 40-58

★DC output current A: 50

★Power factor: 0.99

★Efficiency : ≥ 96%

★Regulation accuracy: ≤ ±0.5%

★Stable current accuracy: ≤ ±1%

★Ripple : ≤ 200mV
