Product details

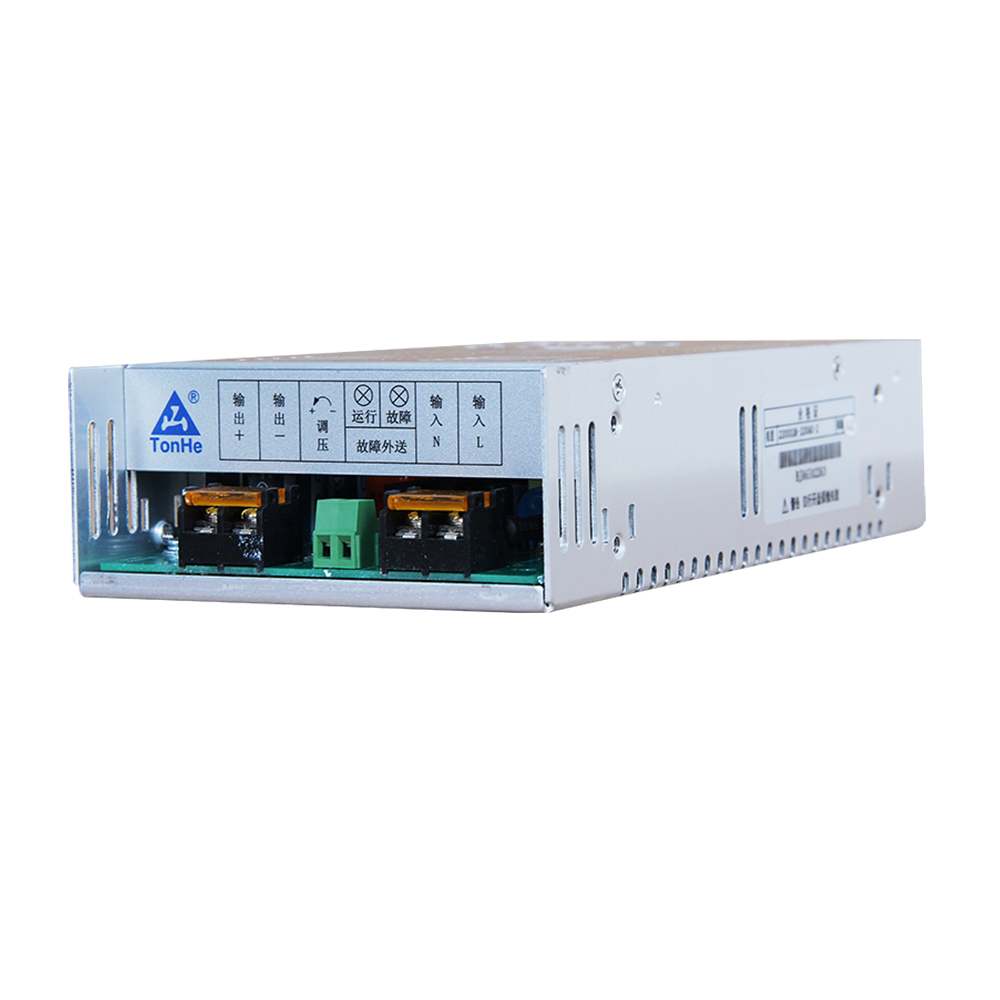

TH220X03N-220AC-2
Small size, simple structure, convenient wiring, and fault dry node.
★Weight: 0.65kg
★Size: 50mm×115mm×215mm (H×W×D, excluding panel connector)
★Cooling method: Forced air cooling
★Working temperature:-10℃～40℃
★AC input voltage VAC:220(-10%～+20%)
★DC output voltage VDC:198～260(99～130)
★DC output current A:3
★Efficiency : ≥ 92%
★Peak ripple factor: ≤ 0.5%
★Noise: ≤ 50dB
★Communication method: none

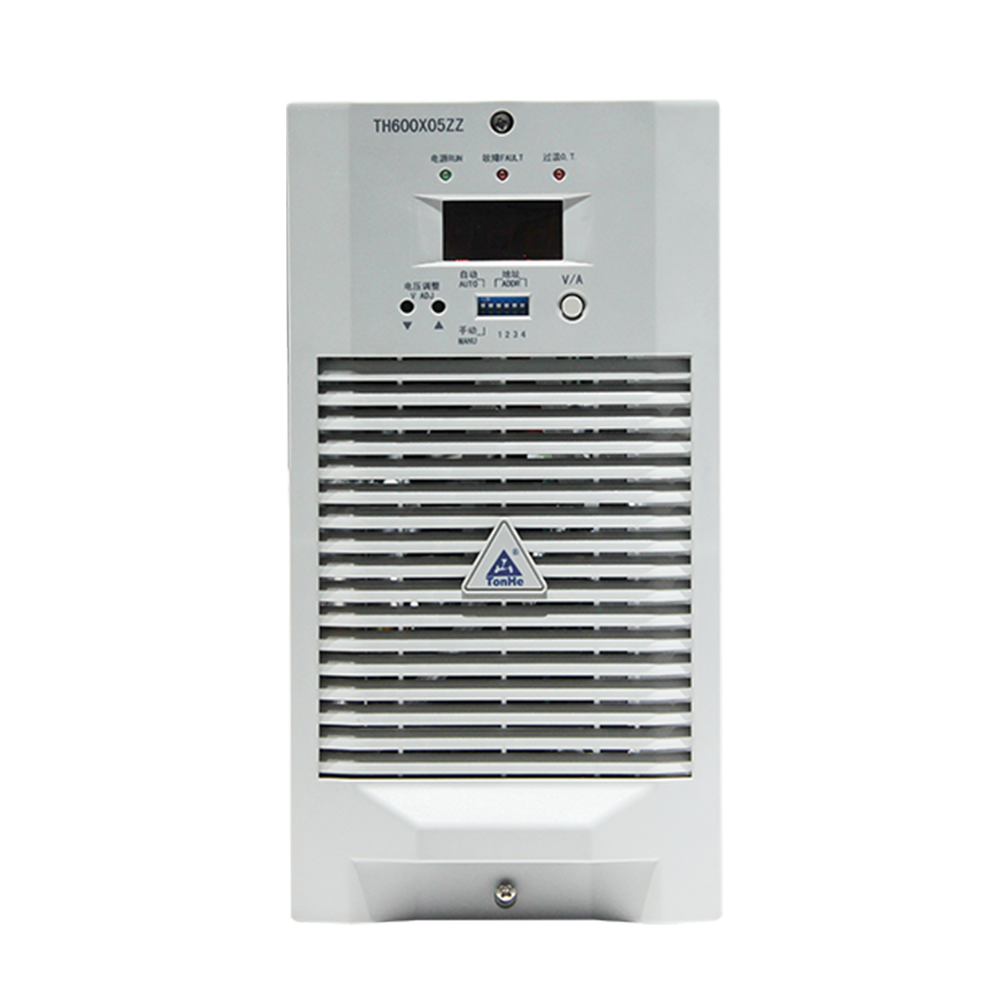

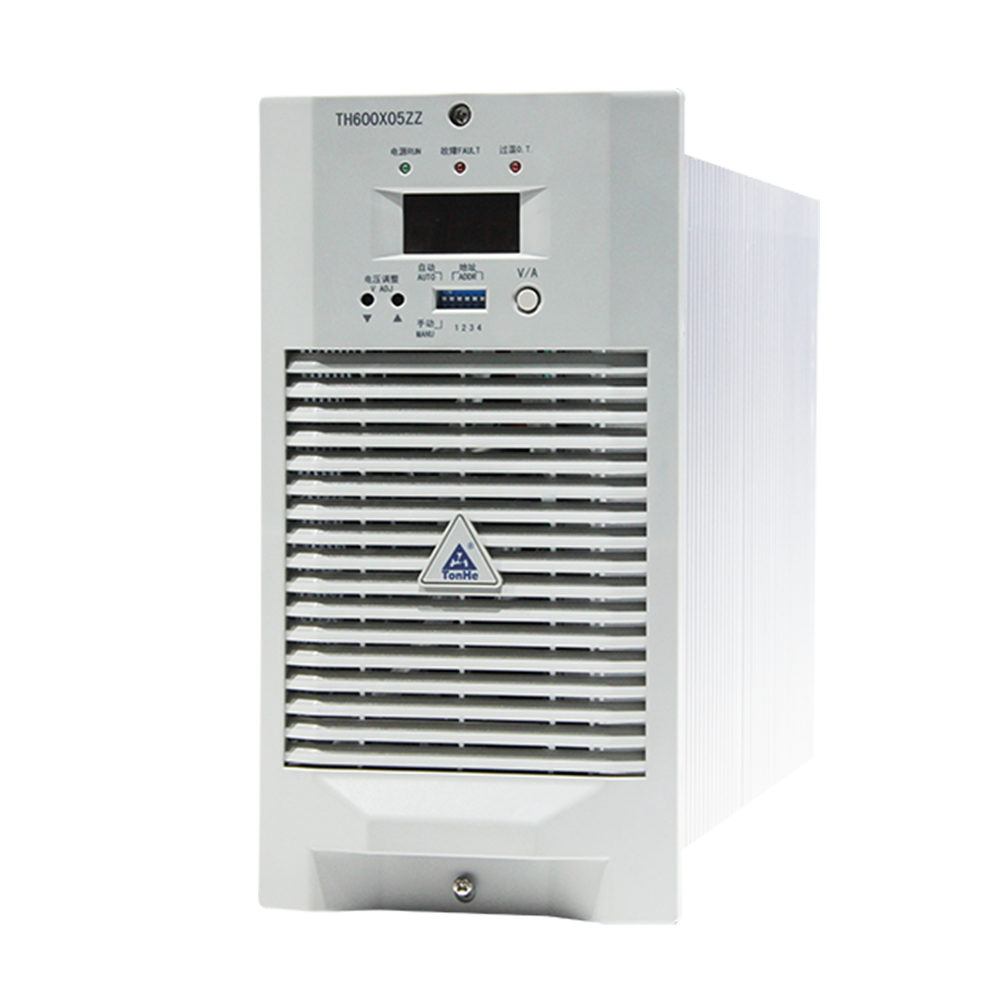

TH600X05ZZ
Self-cooling module. Strong adaptability to the environment and high reliability. MODBUS, TH protocol integration, automatic, manual, independent work three working modes.
★Weight: 9kg
★Size: 263mm×139mm×325mm (H×W×D, excluding panel connector)
★Cooling method: natural air cooling
★Working temperature:-10℃～40℃
★AC input voltage VAC: 380±15%
★DC output voltage VDC: 300 to 450 (300 to 450) (450 to 600)
★DC output current A: 5 (7) (5)
★Efficiency : ≥ 92%
★Peak ripple factor: ≤ 0.5%
★Noise: ≤ 50dB
★Communication method: RS485
